sdi_data.h File Reference

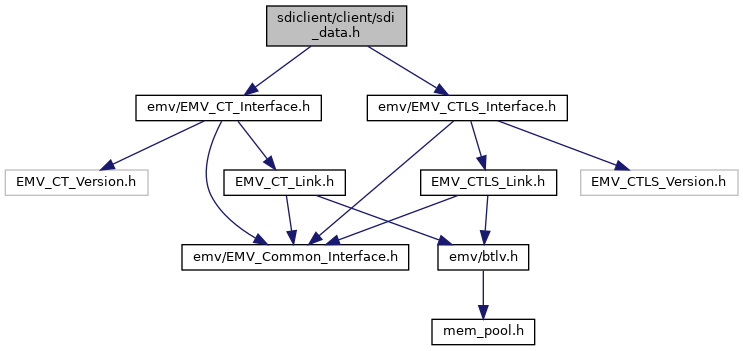

#include "emv/EMV_CT_Interface.h"#include "emv/EMV_CTLS_Interface.h"
Go to the source code of this file.
Macros |
|
| #define | CLA_DATA 0x29 |
| Class for Data Handling. More... |
|
| #define | INS_FETCH_TAGS 0x02 |
| Fetch Tags. More... |
|
| #define | SENSITIVE_TAG_OMIT 0 |
| (b1 & b2): Default handling of sensitive tags by SDI_fetchTxnTags(): Sensitive tags are not returned in the response. More... |
|
| #define | SENSITIVE_TAG_TRUNCATE 0x01 |
| b1: Sensitive tags are returned with zero length. Note: b1 and b2 are mutually exclusive More... |
|
| #define | SENSITIVE_TAG_REPLACE 0x02 |
| b2: Sensitive tags are returned with data replaced by 0xFF bytes and original length More... |
|
| #define | FETCHTAGS_EXPIRY_DATE_IN_CLEAR 0x04 |
| b3: Get expiry date (tag 5F24) in clear text if VCL encryption is enabled More... |
|
| #define | FETCHTAGS_GET_DATA 0x08 |
| b4: Use EMV_ADK_FETCHTAGS_GET_DATA option (for CT only) More... |
|
Functions |
|
| EMV_ADK_INFO | SDI_fetchTxnTags (unsigned char options, unsigned long *requestedTags, unsigned short noOfRequestedTags, unsigned char *tlvBuffer, unsigned short bufferLength, unsigned short *tlvDataLength) |
| Fetch one or several tags at the end of the transaction, excluding sensitive cardholder data. More... |
|
Macro Definition Documentation
◆ CLA_DATA
| #define CLA_DATA 0x29 |
Class for Data Handling.
◆ INS_FETCH_TAGS
| #define INS_FETCH_TAGS 0x02 |
Fetch Tags.
Function Documentation
◆ SDI_fetchTxnTags()
| EMV_ADK_INFO SDI_fetchTxnTags | ( | unsigned char | options, |
| unsigned long * | requestedTags, | ||
| unsigned short | noOfRequestedTags, | ||
| unsigned char * | tlvBuffer, | ||
| unsigned short | bufferLength, | ||
| unsigned short * | tlvDataLength | ||
| ) |
Fetch one or several tags at the end of the transaction, excluding sensitive cardholder data.
One common function for all technologies: CT, CTLS, MSR and manual entry. Sensitive tags are excluded from the returned data in the way defined by the parameter mode. The SDI Server has a predefined set of sensitive tags. Additionally, the user can configure additional sensitive tags using the Software and Configuration Upload command set 20-14, 20-15 and 20-16 as described in the SDI Server documentation. The user can also configure a white list using the same Software and Configuration Upload commands. If a card is in the configured white list, all data is returned in clear text, including also sensitive tags.
- Author
- GSS R&D Germany
- Parameters
-
[in] options ... fetch tags options, see Options for fetching TLV data [in] requestedTags ... requested tags [in] noOfRequestedTags ... number of requested tags [in,out] tlvBuffer ... buffer for TLV output, allocated by calling application [in] bufferLength ... number of bytes allocated for tlvBuffer [out] tlvDataLength ... number of bytes written to tlvBuffer
- Returns
- EMV_ADK_OK, EMV_ADK_PARAM, EMV_ADK_TLV_BUILD_ERR, EMV_ADK_INTERNAL
