#include <vector>

#include <string>

#include <stdint.h>

#include <emv/EMV_Common_Interface.h>

#include <sysinfo/sysinfo.h>

#include <html/prt.h>

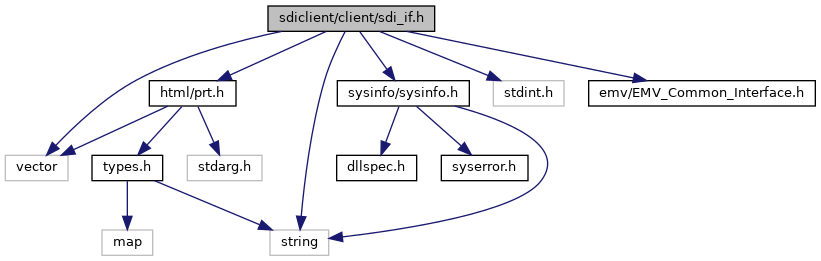

Include dependency graph for sdi_if.h:

Go to the source code of this file.

Data Structures
struct	MatchingRecord
class	SdiBase
struct	SdiBase::PluginResult
class	SdiCmd
	Composition for TLV based SDI commands. More...
class	SDI
class	CardDetection
	Interface for SDI Card Detection Interface, command class 23. More...
class	PED
class	SdiCrypt
struct	SdiCrypt::Placeholder
class	ManualEntry
	Interface for SDI command MSR Card Data Entry (21-02) More...
class	Dialog

Namespaces
	libsdi

Macros
#define	MSR_CLIENT_ERROR_OFFSET 100
	if a client error happens, msr functions will return (enum SDICLIENT_ERROR - MSR_CLIENT_ERROR_OFFSET) More...
#define	VALIDATION_CHECK_OPTION_RETURN_ALL_MATCHING_RANGES 0x01

Enumerations
enum	SDI_SW12 { SDI_SW12_NONE = 0, SDI_SW12_SUCCESS = 0x9000, SDI_SW12_TAG_ERROR = 0x6200, SDI_SW12_TAG_LENGTH_ERROR = 0x6300, SDI_SW12_EXEC_ERROR = 0x6400, SDI_SW12_CANCELED_BY_USER = 0x6405, SDI_SW12_BUSY = 0x640A, SDI_SW12_TIMEOUT_PIN_ENTRY = 0x640C, SDI_SW12_TIMEOUT_NO_MSR_DATA = 0x64F6, SDI_SW12_TIMEOUT_CARD_REMOVAL = 0x64F7, SDI_SW12_INTERCHAR_PIN_ENTRY = 0x64F8, SDI_SW12_COMMAND_NOT_ALLOWED = 0x64F9, SDI_SW12_MAIN_CONNECTION_USED = 0x64FA, SDI_SW12_INVALID_FILE_CONTENT = 0x64FB, SDI_SW12_FILE_ACCESS_ERROR = 0x64FC, SDI_SW12_LOGIC_ERROR = 0x64FD, SDI_SW12_SDI_PARAMETER_ERROR = 0x64FE, SDI_SW12_LUHN_CHECK_FAILED = 0x64FF, SDI_SW12_EXECUTION_ABORTED = 0x6500, SDI_SW12_EXECUTION_TIMEOUT = 0x6600, SDI_SW12_MESSAGE_LENGTH_ERROR = 0x6700, SDI_SW12_NO_SDI_PLUGIN_AVAILABLE = 0x6800, SDI_SW12_UNKNOWN_PLUGIN_ID = 0x6801, SDI_SW12_UNKNOWN_PLUGING_ID = 0x6801, SDI_SW12_INVALID_PLUGIN_RESPONSE = 0x6802, SDI_SW12_EPP_CONNECTION_ERROR = 0x6900, SDI_SW12_UNKNOWN_INS_BYTE = 0x6D00, SDI_SW12_UNKNOWN_CLA_BYTE = 0x6E00, SDI_SW12_CMAC_ERROR = 0x6FB0, SDI_SW12_CMAC_LENGTH_ERROR = 0x6FB1, SDI_SW12_CMAC_MISSING_ERROR = 0x6FB2, SDI_SW12_ENCRYPTION_ERROR = 0x6FB4, SDI_SW12_ENCRYPTION_LENGTH_ERROR = 0x6FB5, SDI_SW12_ENCRYPTION_MISSING_ERROR = 0x6FB6, SDI_SW12_DECRYPTION_ERROR = 0x6FB8, SDI_SW12_DECRYPTION_LENGTH_ERROR = 0x6FB9, SDI_SW12_DECRYPTION_MISSING_ERROR = 0x6FBA, SDI_SW12_EXCESSIVE_PIN_REQUESTS = 0x6FC0, SDI_SW12_LOW_BATTERY = 0x6FD0, SDI_SW12_NO_DUKPT_KEYS_LOADED = 0x6FE0, SDI_SW12_UNIT_TAMPERED = 0x6FF0, SDI_SW12_RECOVERY_MODE = 0x6FF1, SDI_SW12_PIN_BYPASSED = 0x9070, SDI_SW12_NO_MACTCH_FOR_CARD_VALIDATION = 0x9071, SDI_SW12_SMART_CARD_REMOVED = 0x9401, SDI_SW12_SMART_CARD_ERROR_TRM = 0x9402, SDI_SW12_SMART_CARD_ERROR = 0x9403, SDI_SW12_TWO_CARDS = 0x9404, SDI_SW12_SMART_CARD_ERR_INIT = 0x9405, SDI_SW12_SMART_CARD_ERR_PARAM = 0x9406, SDI_SW12_EMV_TLV_ERROR = 0x94F3, SDI_SW12_ERROR = 0x6400, SDI_SW12_TIMEOUT = 0x6600, SDI_SW12_NOT_ALLOWED = 0x64FD, SDI_SW12_PARAMETER_ERROR = 0x90E6 }
enum	SDICLIENT_ERROR { SDICLIENT_ERROR_NONE = 0, SDICLIENT_ERROR_COMMUNICATION = -1, SDICLIENT_ERROR_CONCURRENT_USE = -2, SDICLIENT_ERROR_CONNECT = -3, SDICLIENT_ERROR_OVERFLOW = -4, SDICLIENT_ERROR_PARAM = -5, SDICLIENT_ERROR_OTHER = -6, SDICLIENT_ERROR_NO_RECEIVE = -7, SDICLIENT_ERROR_NOT_SUPPORTED = -10, SDICLIENT_ERROR_NOT_ALLOWED = -11 }
enum	SYSUploadType { SYS_UPLOAD_SOFTWARE_UPDATE = 0, SYS_UPLOAD_CONFIG_WHITELIST = 1, SYS_UPLOAD_CONFIG_SENSITIVE_TAGS = 2, SYS_UPLOAD_CONFIG_CARD_RANGES = 3, SYS_UPLOAD_INSTALL_CP_PACKAGE = 11, SYS_UPLOAD_EMV_CONFIGURATION = 12, SYS_UPLOAD_UVRK_PACKAGE = 13 }

Functions
enum SDICLIENT_ERROR	getNfcClientError ()
enum SDI_SW12	getNfcSW12 ()

Data Structure Documentation

◆ libsdi::SdiBase::PluginResult

struct libsdi::SdiBase::PluginResult

Data Fields
int32_t	pluginId	return value of a plugin's `moduleID` function also used as INS byte of SDI 26-xx command to invoke a plugin, 0 if not available
int32_t	responseCode	plugin's `processTrigger` function return value, SDI_SW12_NONE if not available
vector< unsigned char >	responseData	plugin response data

◆ libsdi::SdiCrypt::Placeholder

struct libsdi::SdiCrypt::Placeholder

Data descriptor for getEncData(), getEncMsgData() and getMsgSignature()

Data Fields
vector< unsigned char >	applicationData	data that can be referenced in Placeholder::tagList (DFA120)
vector< unsigned char >	dataOptions	data formatting options (DFA121) - see SDI programmers guide, getEncData (29-00)
vector< unsigned char >	tagList	DOL format with length 0 for variable lengths (DF8F30)

Macro Definition Documentation

◆ MSR_CLIENT_ERROR_OFFSET

#define MSR_CLIENT_ERROR_OFFSET 100

if a client error happens, msr functions will return (enum SDICLIENT_ERROR - MSR_CLIENT_ERROR_OFFSET)

◆ VALIDATION_CHECK_OPTION_RETURN_ALL_MATCHING_RANGES

#define VALIDATION_CHECK_OPTION_RETURN_ALL_MATCHING_RANGES 0x01
