Application Development Kit (Version 4.7)

This document contains information on how to use and integrate Cloud Proxy to access the Verifone Cloud.

Audience

This guide helps application developers to install and utilize the functionality of Cloud Proxy.

Organization

This guide is organized as follows:

Chapter 1, Overview: Provides the introduction and overview for Cloud Proxy.

Chapter 2, Supported Platforms & System Requirements: Shows the OS platforms Cloud Proxy is provided for and specifies prerequisites to the environment.

Chapter 3, Environments and Download Packages: Description of Cloud Proxy installation packages and packages to activate or add additional cloud environments.

Chapter 4, Environment Configuration File: Description of Cloud Proxy environment configuration file and parameters.

Chapter 5, Local HTTP Proxy Support: Description how to configure a local HTTP proxy

Chapter 6, Getting Started: How to getting Cloud Proxy started on several platforms.

Chapter 7, Error Handling: Internal Error messages of Cloud Proxy and its meaning.

Chapter 8, Troubleshooting: Measures for identification and fixing problems.

Chapter 9, CP Log Forwarder: How to setup and configure the CP Log Forwarder.

Chapter 10, Cloud Proxy Configuration Interface: How to use Cloud Proxy Configuration Interface.

Appendix Version History and Greenbox Migration provides additional information about Cloud Proxy Version History. Depending on version, Cloud Proxy will migrate to Greenbox (GSC endpoints).

Related Documentation

To learn more about the ADK framework, please refer to the following documents:

• ADK GUI Programmers Guide
• ADK SYS Programmers Guide
• ADK Communication Service Programmers Guide
• ADK Logging Programmers Guide

Acronyms Definition

Acronym	Definitions
ADK	Application Development Kit
API	Application Programming Interface
DNS	Domain Name System
EOF	End of File
IPC	Inter Process Communication
JSON	JavaScript Object Notation
OS	Operating System
SDK	Software Development Kit
TCP/IP	Transmission Control Protocol/Internet Protocol
VOS	Verifone Operating System
VOS2	Verifone Operating System (Version 2)
VFI Cloud	Computer network providing online services and applications to Verifone terminals
CP	Commerce Platform
CPR	Commerce Platform Runtime
HTML	Hypertext Markup Language
CSS	Cascading Style Sheets
JS	JavaScript
MAC	Multi Application Controller
TLS	Transport Layer Security
SSL	Secure Socket Layer
PK	Private Key
CA	Certificate Authority
URL	Uniform Resource Locator
PEM	Privacy Enhanced Mail
base 64	Binary-to-text encoding schemes that represent binary data in an ASCII string format
sysmode	System mode, administration GUI front-end on Fusion/Engage
RTT	Round Trip Time
CpDev	CP Development Unit
OsDev	OS Development Unit
ASL	ADK system launcher
LAN	Local area network

Overview

With Verifone Commerce Platform Runtime (CPR) a new application type was introduced: Commerce Platform Applications (CP applications).



CP applications are considered as alternative applications formed by HTML/CSS/JS and can run beside native C/C++ applications that are typically in use for payment processing. CP applications usually operate online and they use HTTP requests to communicate with remote services of the VFI Cloud. Due to security reasons, CP applications must not be allowed to open arbitrary connections to external servers. Also direct incoming connections must not be allowed. For this reason, CP applications run in a controlled environment, some kind of sandbox, which is provided by the Multi Application Controller (MAC).

All connections initiated by CP applications are established and processed in context of MAC, which uses the local loopback device to connect to the Cloud Proxy running on the same terminal. MAC uses HTML based ADK GUI component, which allows CP applications to use JavaScript (JS) interface xmlHTTPRequest() for sending and receiving HTTP requests and responses. Cloud Proxy acts as HTTP gateway for CP applications and provides a secure SSL channel to VFI Cloud (TLSv1.2). For establishing the mutual authenticated SSL channel both instances, Cloud Proxy and Server have certificates and private keys required for secure encryption and authentication:

Cloud Proxy:

Data file	Description
Cloud Proxy certificate	Certificate containing the public key of the Cloud Proxy signed by Verifone Certificate Authority (VFI CA). This is used to authenticate the Cloud Proxy on the Cloud Server side.
VFI CA certificate	Certificate of the VFI CA. Cloud Proxy uses this certificate to verify the signature of the Cloud Server certificate to authenticate the Cloud Server.
PK Cloud Proxy	Private key of the Cloud Proxy, usually stored in secure area of the terminal. This key corresponds to the public key stored in Cloud Proxy certificate and it is used authenticate the Cloud Proxy on the Cloud Server side.

Cloud Server:

Data file	Description
Cloud Server certificate	Certificate containing the public key of the Cloud Server signed by Verifone Certificate Authority (VFI CA). This is used to authenticate the Cloud Server on the Cloud Proxy side.
VFI CA certificate	Certificate of the VFI CA. Cloud Server uses this certificate to verify the signature of the Cloud Proxy certificate to authenticate the Cloud Proxy.
PK Cloud Server	Private key of the Cloud Server. This key corresponds to the public key stored in Cloud Server certificate and it is used authenticate the Cloud Server on the Cloud Proxy side.

Long-lived TLS connection to Cloud Server

If a local client (e.g. CP app) sends a HTTP request, Cloud Proxy will establish a new TLS connection, if it has not connected before or the existing connection was closed or is disturbed. After some validation of the HTTP document, Cloud Proxy redirects the message to the Cloud Server. When response from Cloud Server is received, Cloud Proxy keeps the existing TLS channel as long as it is not closed by the server. This will avoid high RTTs for multiple HTTP requests, which would be caused by overhead of the TLS handshake during connection setup. After SSL negotiation, more efficient symmetric ciphers are used, therefore subsequent HTTP requests can be transmitted more faster than single, sporadic requests, which require a reconnect to the server.

Supported Platforms & System Requirements

Download packages for Cloud Proxy are available for the following platforms:

• Fusion (VOS)

  System requirements: Cloud Proxy for VOS requires at least OS version 30250102 or later.
• Engage (VOS2)

  System requirements: Cloud Proxy for VOS2 requires at least OS version 30350102 or later.

Environments and Download Packages

There are several variants and endpoints of Verifone Cloud. Each variant/endpoint represents an environment, which is addressed by its own URL. Implementation and configuration of these environments are different, therefore, users must be aware of using the correct endpoint, which provides required web services for the used CP apps. In addition, these environment endpoints require different authentication settings like certificates to establish secure connection with SSL. For this reason, several download packages are provided to install and activate a specific environment.

Cloud Proxy installs several default environments with the base package (see chapter Cloud Proxy base packages). Users can install an additional activation package on top to activate a specific default environment (see chapter Default environments and activation). In addition, users have to the option to install an User Configuration Package to add own environments if required (see chapter Install additional environments).

Cloud Proxy base packages

The following table lists the base download packages to install or uninstall Cloud Proxy:

Description	Download package
Base package This package installs the Cloud Proxy binary and the base configuration (URLs and certificates) for the several default environments described in the chapter Default environments and activation. As long as no activation package for a specific environment is installed, Cloud Proxy uses one environment as default, which depends on device type: Productive unit: prod environment Test unit (OsDev/CpDev): staging1 environment	VOS/VOS2 platform: dl.cloudproxy-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-X.X.X-X.tar (sys13 package for OsDev unit)
Removal package This package uninstalls the base package. In addition, an installed activation package (see chapter chapter Default environments and activation) is removed.	VOS/VOS2 platform: dl.cloudproxy-remove-X.X.X-X-prod.tar (removes base and activation package from productive and CpDev unit) dl.cloudproxy-remove-X.X.X-X.tar (removes base and activation package from OsDev unit)

Default environments and activation

Each environment is specified by a configuration file having name <environment>.env. The content and configuration settings for an environment file are described in chapter Environment Configuration File.

Cloud Proxy base package (see Cloud Proxy base packages) installs several default environments, which are listed in the following table:

Environment name	Configuration file	Description
gsc_dev	gsc-dev.env	Environment settings for GSC Development Cloud
gsc_qat	gsc-qat.env	Environment settings for GSC Test Cloud
gsc_cst	gsc-cst.env	Environment settings for GSC Staging Cloud
gsc_prod	gsc-prod.env	Environment settings for GSC Productive Cloud
gsc_cst_us	gsc-cst-us.env	Environment settings for GSC Staging Cloud (US region)
gsc_prod_us	gsc-prod-us.env	Environment settings for GSC Productive Cloud (US region)
dev	old-dev.env	Environment settings for CG Development Cloud Deprecated, please move GSC Development soon!!!
test	old-test.env	Environment settings for CG Test Cloud Deprecated, please move GSC Test soon!!!
staging1	old-staging1.env	Environment settings for CG Staging Cloud (Default for CpDev and OsDev units) Deprecated, please move GSC Staging soon!!!
prod	old-prod.env	Environment settings for CG Productive Cloud (Default for productive units) Deprecated, please move GSC Productive soon!!!

On Fusion (VOS) and Engage (VOS2) the default environment files are located in subfolder proxy in working directory of binary cloudproxy under /home/sys13.

In addition, Cloud Proxy base package installs the following symbolic links pointing to one environment file above:

Environment link	Environment file	Description
dev.env	old-dev.env	Environment settings for CG Development Cloud
test.env	old-test.env	Environment settings for CG Test Cloud
statging1.env	old-staging1.env	Environment settings for CG Staging Cloud
prod.env	old-prod.env	Environment settings for CG Productive Cloud

With installation of an additional activation package, the user can activate another environment to select another cloud gateway endpoint.

Depending on the device type, Cloud Proxy uses a specified environment as default, if it was started for the first time without installed activation package.

The following activation packages are provided with this Cloud Proxy release:

Environment	Description	Activation package
gsc_dev	GSC Development Cloud URL: dev2.test-gsc.vfims.com:443 This cloud environment shall be used by terminal or CP application developers to test software during terminal development. The development cloud may contain stable and unstable web services. Users can enable this environment by downloading the gsc_dev activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-gsc_dev-X.X.X-X-prod.tar (system package for productive and CpDev unit) dl.cloudproxy-cfg-gsc_dev-X.X.X-X.tar (system package for OsDev unit)    These download packages cannot be used for productive units, since the environment gateway has not installed productive AuthEX CA! If installed on a productive unit, Cloud Proxy will ignore this configuration and fallback to default environment prod.
gsc_qat	GSC Test Cloud URL: qat2.test-gsc.vfims.com:443 This cloud environment is used by QA teams and for validation. Stable and well tested web services are installed here to test and qualify existing CP applications. Users can enable this environment by downloading the gsc_qat activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-gsc_qat-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-cfg-gsc_qat-X.X.X-X.tar (sys13 package for OsDev unit)    These download packages are allowed to be used for both, productive and test units!
gsc_cst	GSC Staging Cloud URL: cst2.test-gsc.vfims.com:443 This cloud environment is used for demos or final development tests before a web service is deployed on a productive system. It can also be used to provide a stable web service as kind of a sandbox for external users (e.g. third-party developers). Users can enable this environment by downloading the gsc_cst activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-gsc_cst-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-cfg-gsc_cst-X.X.X-X.tar (sys13 package for OsDev unit)    These download packages are allowed to be used for both, productive and test units!
gsc_prod	GSC Productive Cloud URL: gsc.verifone.cloud:443 This cloud environment is used for productive purposes and terminals in field. Only stable and well tested web services are installed here. Users can enable this environment by downloading the gsc_prod activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-gsc_prod-X.X.X-X-prod.tar (sys13 package for productive unit)    These download packages are allowed to be used on productive units only! If installed on a test unit (CpDev or OsDev), Cloud Proxy will ignore this configuration and fallback to default environment staging1.
gsc_cst_us	GSC Staging Cloud (US region) URL: uscst-gb.gsc.vficloud.net:443 Same as gsc_cst, but this endpoint is intended for use in US region. Users can enable this environment by downloading the gsc_cst_us activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-gsc_cst_us-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-cfg-gsc_cst_us-X.X.X-X.tar (sys13 package for OsDev unit)    These download packages are allowed to be used for both, productive and test units!
gsc_prod_us	GSC Productive Cloud (US region) URL: us.gsc.verifone.cloud:443 Same as gsc_prod, but this cloud environment is used for productive purposes and terminals in US region. Users can enable this environment by downloading the gsc_prod_us activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-gsc_prod_us-X.X.X-X-prod.tar (sys13 package for productive unit)    These download packages are allowed to be used on productive units only! If installed on a test unit (CpDev or OsDev), Cloud Proxy will ignore this configuration and fallback to default environment staging1.
dev	CG Development Cloud (deprecated) URL: dev.cgateway.verifone.com:443 Old cloud environment for development. This environment is deprecated and just kept for compatibility reasons or to use old web services, which won't move to new environemnt gsc_dev. Users should migrate to the new environment soon, since environment dev will go offline after some time. Users can enable this environment by downloading the dev activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-dev-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-cfg-dev-X.X.X-X.tar (sys13 package for OsDev unit)    These download packages cannot be any longer used for productive units, since the environment gateway has not installed productive AuthEX CA! If installed on a productive unit, Cloud Proxy will ignore this configuration and fallback to default environment prod.
test	CG Test Cloud (deprecated) URL: test.cgateway.verifone.com:443 Old cloud environment for QA and testing. This environment is deprecated and just kept for compatibility reasons or to use old web services, which won't move to new environemnt gsc_qat. Users should migrate to the new environment soon, since environment test will go offline after some time. Users can enable this environment by downloading the test activation package.	VOS/VOS2 platform: dl.cloudproxy-cfg-test-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-cfg-test-X.X.X-X.tar (sys13 package for OsDev unit)    These download packages are allowed to be used for both, productive and test units!
staging1	CG Staging Cloud (deprecated) URL: staging1.cgateway.verifone.com:443 Old staging cloud environment. This environment is deprecated and just kept for compatibility reasons or to use old web services, which won't move to new environemnt gsc_cst. Users should migrate to the new environment soon, since environment staging1 will go offline after some time. Users can enable this environment by downloading the staging1 activation package.    This cloud environment is used as default for test units (CpDev and OsDev). Therefore, these packages are not required for initial setup of these terminals.	VOS/VOS2 platform: dl.cloudproxy-cfg-staging1-X.X.X-X-prod.tar (sys13 package for productive and CpDev unit) dl.cloudproxy-cfg-staging1-X.X.X-X.tar (sys13 package for OsDev unit)    These download packages are allowed to be used for both, productive and test units!
prod	CG Productive Cloud (deprecated) URL: cgateway.verifone.com:443 Old staging cloud environment. This environment is deprecated and just kept for compatibility reasons or to use old web services, which won't move to new environemnt gsc_prod. Users should migrate to the new environment soon, since environment prod will go offline after some time. Users can enable this environment by downloading the prod activation package.    This cloud environment is used as default for productive units. Therefore, this package is not required for initial setup of these terminals.	VOS/VOS2 platform: dl.cloudproxy-cfg-prod-X.X.X-X-prod.tar (sys13 package for productive unit)    These download packages are allowed to be used on productive units only! If installed on a test unit (CpDev or OsDev), Cloud Proxy will ignore this configuration and fallback to default environment staging1.

Install additional environments

Since version 3.2.0 (and version 3.0.40), Cloud Proxy has added support to install User Configuration Packages to add additional environments with required SSL certificates. User Configuration Packages are provided by the Cloud Proxy end users (application or integration team), thus, these packages can be signed having sponsor signing previleges (e.g. with regional singing cards for VOS/VOS2).

VOS/VOS2 User Configuration Packages

Basically, Cloud Proxy User Configuration Packages for VOS/VOS2 are installed to following read-only device location:

/etc/config

User Configuration Packages for Cloud Proxy must use subfolder proxy so that the related files will be located on the devices at follows:

/etc/config/proxy

User Configuration Packages may contain the following data:

1. Bundle with arbitrary name (user: usr1-usr16):
   • Package with arbitrary name (user: usr1-usr16, group: share, type: config):


     Destination	File	Description
     /etc/config/proxy	<environment>.env	Environment configuration file as specified in chapter Environment Configuration File.    Flag activate in section cloud in the configuration file can be used to activate the environment with the next startup of Cloud Proxy (after the User Configuration Package is installed). The filename <environment>.env must differ to default environment files as installed with the Cloud Proxy base package (see chapter Default environments and activation). If a name conflicts, the environment file <environment>.env of the User Configuration Package is ignored.
     /etc/config/proxy	*.pem, *.p12	Additional certificates/key files, which are referred by the environment file <environment>.env. For more details refer to descritiption of ca-file and client-id in chapter Environment Configuration File.

A sample User Configuration Package for the corresponding platform comes along in subfolder example/load/usr_config of documentation package prx-doc-X.X.X-X.zip:

• dl.prx-usrconfig-sample-env-X.X.X-X.tar

  This package installs a sample environment file sample.env with a root CA certificate mycloud-ca.pem. The certificate is refered by ca-file in the environment file, which is used to autenticate the server for cloud endpoint url.

Environment Configuration File

This chapter describes the content and settings of an environment configuration file. Several default environments come along with installation of Cloud Proxy base package (see chapter Cloud Proxy base packages), which can be activated with additional packages installed on top of the base installation. In addition, users have the option to install additional environments with a User Configuration Package (see chapter Install additional environments).

The configuration file for the active environment is read at startup of Cloud Proxy and contains the following settings:

(Example configuration file: gsc_qat environment in file test.env)

[cloud]
; URL of the VFI-Cloud environment, e.g. vfi-cloud.verifone.com:8843, URL is mandatory, default port: 8843
url=qat2.test-gsc.vfims.com:443
; name of the environment (alias). This is used as 'environment name' with the Cloud Proxy Configuration Interface
; (see parameters cloud_env_list and cloud_env_list2). If not set, the environment filename is used without
; extension *.env. Please note that alias must be identical crossover environment configuration files and also not
; conflict with other environment filenames, if these files don't use an alias.
alias=gsc_qat
; productive environment, set to value 'true', if this environment uses productive AuthEx CA, which can be used by productive units only.
; Value 'false' implies that only cp-dev and os-dev devices can use this environment having DEV AuthEx CA (default: false).
; Please note variable 'allow_prod_unit', which allows productive units to use non-prod environment with AuthEx!
prod=false
allow_prod_unit=true
; activate this environment after it is installed with user config package, default: false
; activate=false -> default configuration coming along with Cloud Proxy base package
; name of the file containing the root CA certificate of VFI cloud, default=cloud-ca.pem
; Note: In case of using 'new-ca-file', 'ca-file' contains 2 CA root certificates, which
; are used during transition phase to migrate VFI cloud to a new CA (CA update):
; 1. CA certificate: for VFI cloud with the current CA to be replaced (before the CA update)
; 2. CA certificate: for VFI cloud with the new CA (after the CA update)
ca-file=cloud-ca.pem
; name of the file containing the new root CA certificate of VFI cloud after a pending
; CA update, default=empty
; Note: This certificate must equal the new 2. CA certificate specified in file 'ca-file',
;       since Cloud Proxy switches from 'ca-file' to 'new-ca-file', after it has connected
;       to the updated VFI cloud for the first time. From this point, Cloud Proxy will not
;       be able to connect to VFI cloud using the old CA.
; new-ca-file=new-cloud-ca.pem

[proxy]
; filename of the PEM or PKCS12 file containing an alternative client certificate/private key.
; This is used, if device hasn't installed AuthEx certificate/key or AuthEx was disabled Cloud Proxy Configuration Interface.
; default: empty (force usage of AuthEx certifcate/key if installed)
; client-id=
; label string used by cloudproxy for the client certificate (if empty 'client-id' w/o file extension is used)
; client-id-label=
; client timeout in sec when waiting for replies from the cloud, default=30sec
timeout=30
; listen port number for incoming connections from the clients, default=8888
port=8888

[logservice]
; URL of the log gateway (usually a relative path)
url=/cp
; host as destination for the logs (host used for routing the logs)
host=logging-service.verifone.com
; initial log level used for CP app logging, default=5
loglevel=7

[connectivity]
; URL of the availability service (usually a relative path)
url=/DeviceConnectivity/Check
; availability service host
host=gsc

Description of settings in configuration file <environment>.env:

Section	Parameter	Description
cloud	url	URL of the VFI Cloud gateway, which specifies a host name (and a port). Both parameters are separated by ':'. If no port is specified, port 8843 is used as default.    Please note that the cloud host name is mandatory and Cloud Proxy will not start, if it is not configured.
cloud	alias	Name or alias used for the environment. Parameter alias is optional. If not set, the environment filename is used without extension *.env (e.g. prod.env will use name prod).    The environment name must be unambiguous crossover environment configuration files. If it conflicts with another environment name, the environment file is ignored. The environment name is used Cloud Proxy Configuration Interface for parameters cloud_env, cloud_env_list, cloud_env_list2.
cloud	prod	Flag set to true, if the environment is productive and uses productive AuthEx CA. This CA can be used by productive units only. Value false means that the environment is not productive and can only be accessed by CpDev and OsDev devices (as long as allow_prod_unit is not set to true (see below). Default value for prod is false.
cloud	allow_prod_unit	Flag set to true, if the non-productive environment (prod set to false) is allowed to be used by a productive unit using AuthEx. This value is ignored, if prod is set to true. Default value for allow_prod_unit is false.
cloud	activate	Flag set to true, if the environment specified with this configuration files shall be activated, if it is installed (default: false). Default environments installed with Cloud Proxy base package don't use this flag. This was introduced for additional environments installed with an User Configuration Package (see chapter Install additional environments).
cloud	ca-file	File containing the X.509 root CA certificate of the VFI cloud. Cloud Proxy uses this certificate to verify the signature of the Cloud Server certificate to authenticate the Cloud Server. The file is in PEM format (Privacy Enhanced Mail) and stores the certificate base 64 encoded. If parameter ca-file is not specified, Cloud Proxy uses ca-file.pem as default. If the file does not exist, Cloud Proxy will not start and aborts with an error.    If a relative file path is used, Cloud Proxy binary will lookup the certificate file relative to this environment configuration file. In case of using new-ca-file, ca-file contains 2 CA root certificates, which are used during transition phase to migrate VFI cloud to a new CA (CA update): CA certificate: for VFI cloud with the current CA to be replaced (before the CA update) CA certificate: for VFI cloud with the new CA (after the CA update)
cloud	new-ca-file	File containing the new X.509 root CA certificate for the VFI cloud after a pending CA update. The file is in PEM format (Privacy Enhanced Mail) and stores the certificate base 64 encoded. If parameter new-ca-file is not specified, Cloud Proxy is not prepared for a CA update and and uses the root CA certificate specified by ca-file . If new-ca-file is specified and the file does not exist, Cloud Proxy will not start and aborts with an error.    The new root certificate must equal the new 2. CA certificate specified in file ca-file, since Cloud Proxy switches from ca-file to new-ca-file, after it has connected to the updated VFI cloud for the first time. From this point, Cloud Proxy will not be able to connect to VFI cloud using the old CA. If a relative file path is used, Cloud Proxy binary will lookup the certificate file relative to this environment configuration file.
proxy	client-id	For testing purposes (e.g. development tests) or due to legacy reasons the filed client-id can optionally used to provide a file containing a X.509 certificate and a private key, which will be used as alternative to AuthEx. The certificate is transmitted to Cloud Server during connection setup to authenticate the terminal as a trusted client (mutual authenticated SSL connection). The file can be provided in PEM format (base 64 encoded, plain text) or in PKCS12 format, which data is usually encrypted with a password.    It is definitely not recommented to use an own client certificate/key, since storing the private key in file system is potentially insecure! Therefore, the field client-id should be removed (or kept empty) that will enable AuthEx certificate/key as preferred authentication method. AuthEx is usually available with pre-installed Warrenty Keys on all terminals. Warrenty Keys are stored in the terminal's vault and cloudproxy will use secure SSL engine to access the keys. If a relative file path is used, Cloud Proxy binary will lookup the certificate file relative to this environment configuration file.
proxy	client-id-label	Label string used by Cloud Proxy for the client certificate specified by client-id. The label is returned Cloud Proxy Configuration Interface in certificate list for each in environemnt (see parameter cloud_env_list2). If this parameter is empty, Cloud Proxy used filename client-id w/o file extension.
proxy	timeout	Timeout in seconds which is used by Cloud Proxy to connect or receive data from the Cloud Server. If no connection could be established or no data is received from Cloud Server within the specified timeout, the Cloud Proxy returns a HTTP error response to the requesting client. For more details please refer to chapter Error Handling.
proxy	port	This parameter specifies the listen port for incoming connections from clients. Please note that the listen port on productive units is restricted to local loopback device and external incoming connections are declined. No authentication is implemented and all local processes are allowed to connect. This means that access is not restricted to CP applications and MAC only. Default port is 8888.    For testing and development purposes the port is enabled for external access when using a test unit (CpDev and OsDev).
logservice	url	URL of the webserver providing the Verifone CP Logging Service. This is usually a fully qualified URL with a host name (and a port). If the webserver is behind a reverse proxy the URL might be relative path. Optional parameter host can be specified to address a downstream server behind the proxy. Host name and port of the URL are separated by ':'. If no port is specified, port 80 is used as default. Please note that this URL is mandatory and CP Log Forwarder is disabled, if it is not configured or empty. For more details please refer to chapter CP Log Forwarder.
logservice	host	This value specifies the destination host for the logs. Usually this parameter is used for routing, if the webserver for the Verifone CP Logging Service is behind a proxy. This could also be third party host receiving the logs. CP Logging data is forwarded to the VFI Cloud gateway, therefore, value host is not interpreted, just added as field Host in HTTP header of the CP logging message. The parameter host is optional.
logservice	loglevel	This is the initial log level used for CP app logging. The default is 5. CP log messages with a logging level above loglevel are filtered and not send to Verifone CP Logging Service. The VFI Cloud may update this value per CP app during runtime.
connectivity	url	URL of the webserver providing the Verifone Connectivity Service. This is usually a fully qualified URL with a host name (and a port). If the webserver is behind a reverse proxy the URL might be relative path. Optional parameter host can be specified to address a downstream server behind the proxy. Host name and port of the URL are separated by ':'. If no port is specified, port 80 is used as default. Please note that this URL is mandatory and connectivity check is disabled, if it is not configured or empty. For more details please refer to chapter Cloud Connectivity Check.
connectivity	host	This value specifies the destination host for the connectivity check requests. Usually this parameter is used for routing, if the webserver for Verifone Connectivity Service is behind a proxy. HTTP messages for connectivity check are forwarded to the VFI Cloud gateway, therefore, value host is not interpreted, just added as field Host in HTTP header of the connectivity check request. The parameter host is optional.

Local HTTP Proxy Support

Since version 3.4.0 (and version 3.0.40), Cloud Proxy has added support to establish Cloud connections over a HTTP proxy. This HTTP proxy usually is available in LAN and provides HTTP clients access to outer world. Instead of connecting to Cloud endpoint directly (which is specified by Environment Configuration File), Cloud Proxy first establishes the TCP/IP connection to this local HTTP proxy. As second step it sends a HTTP CONNECT request to this proxy to establish a transparent TCP/IP channel to the Cloud endpoint. Finally, Cloud Proxy does the TLS handshake over this spliced channel to establish a secure end-to-end TLS connection to the Cloud endpoint.

The activation of a local HTTP proxy is done by configuration file httpproxy.cfg.

The file may contain multiple sections to configure a HTTP proxy for one or more specific Cloud environments.

; productive environment gsc_prod uses this proxy (specified by prod.env)
[gsc_prod]
proxy=192.168.188.250:8888
attribute_1=Proxy-Authorization: Basic YW5kcmU6ZHJvd3NzYXA=
attribute_2=X-VFI-TEST: Some proxy data
attribute_3=X-VFI-TEST2: More proxy data

; pseudo environment name 'default' is used to configure a default HTTP proxy
[default]
proxy=192.168.188.250:8080
attribute_1=X-VFI-TEST: Some proxy data
attribute_2=X-VFI-TEST2: More proxy data

The section name represents the environment name, which is either the environment alias specified in (see Environment Configuration File) or the basename of environment configuration file w/o extension, in case no alias is used.

Pseudo environment name default represents the default HTTP proxy, which is used, if the name of the active environment does not match any other section. Section default can be used as one and only section, if only one proxy shall be used for all environments. If section default is omitted and no corresponding section matches to the name of the active environment, no local HTTP proxy will be used.

Description of section parameters in configuration file httproxy.cfg:

Parameter	Description
proxy	URL of the HTTP proxy, which specifies a host name or IP address (with a port). Both parameters are separated by ':'. If no port is specified, port 8888 is used as default.    Please note that parameter proxy is mandatory and section skipped, if it misses mandatory data or contains an invalid format. IPv6 IP address are bracketed with [], example: proxy=[::1]:12345.
attribute_<number>	HTTP header attribute(s) added to HTTP CONNECT request, which is sent to HTTP proxy to establish the TCP/IP channel. Attribute <number> starts with 1, numbers of following attributes must have ascending order.    Attributes for HTTP CONNECT might be required, if the HTTP proxy requires authentication with Proxy-Authorization.

HTTP proxy configuration file httpproxy.cfg is installed with an User Configuration Package. User Configuration Packages are provided by the Cloud Proxy end users (application or integration team), thus, these packages can be signed having sponsor signing previleges (e.g. with regional singing cards for VOS/VOS2).

VOS/VOS2 User Configuration Packages

A VOS/VOS2 User Configuration Package is installed to /etc/config, whereas Cloud Proxy uses subfolder /etc/config/proxy (see also chapter Install additional environments).

An User Configuration Package to active/configure a HTTP proxy may contain the following data:

1. Bundle with arbitrary name (user: usr1-usr16):
   • Package with arbitrary name (user: usr1-usr16, group: share, type: config):


     Destination	File	Description
     /etc/config/proxy	httpproxy.cfg	HTTP proxy configuration file with content specified above. With restart of Cloud Proxy, the configuration will be read and applied for the environments.

A sample User Configuration Package for the corresponding platform comes along in subfolder example/load/usr_config of documentation package prx-doc-X.X.X-X.zip:

• dl.prx-usrconfig-sample-proxy-X.X.X-X.tar

  This package installs a sample configuration file httpproxy.cfg for using one HTTP proxy 192.168.188.34:8888 for all environments:

  ; all environments use 'default' proxy
  [default]
  proxy=192.168.188.34:8888
  attribute_1=Proxy-Authorization: Basic YW5kcmU6ZHJvd3NzYXA=
  attribute_2=X-VFI-TEST: Hello
  attribute_3=X-VFI-TEST2: World


Getting Started

Depending on platform do the following steps to install Cloud Proxy:

• VOS/VOS2 platform:
  • Get latest load distribution package prx-vos-load-X.X.X-X.zip or prx-vos2-load-X.X.X-X.zip from Artifactory and extract it. Alternatively download full package prx-full-X.X.X-X.zip containing packages for all platforms.
  • On terminal enter sysmode (system mode) and put terminal into Netloader download mode
  • On PC start MX9 Downloader tool and download the base package dl.cloudproxy-X.X.X-X.tar (see chapter Cloud Proxy base packages)
  • After installation of the package in home directory of user sys13, the terminal reboots and cloudproxy service is automatically launched by launched by MAC. Please note that cloudproxy get launched only, if at least one CPApp is installed.
  • If required, user can install an additional activation package to enable a specific default environment (see chapter Default environments and activation). For this, just repeat the steps above with the corresponding activation package.






  Please note that Cloud Proxy binary depends on ADK libraries libvfiipc and liblog. Instructions for installation on the corresponding platform can be found in documentations of ADKIPC and ADKLOG projects.




Error Handling

After Cloud Proxy has accepted a new client connection to process a HTTP request, there might occur several errors for a variety of reasons. Behaviour and actions of Cloud Proxy in this error situations depend on phase of the live circle of the HTTP request. The following table lists the session states of Cloud Proxy in which HTTP request is processed and the possible errors, which will lead to the resulting actions:

Session State	Errors	Actions
Cloud Proxy receives the request HTTP header from the client	HTTP header is invalid (e.g. format error) HTTP header is not received or incomplete (receive timeout) I/O error while receiving the HTTP header (e.g. connection is closed by client)	Cloud Proxy returns HTTP response 400 (Bad Request) and closes the client socket Cloud Proxy returns HTTP response 408 (Request Timeout) and closes the client socket Cloud Proxy closes the client socket
Cloud Proxy connects to VFI Cloud gateway	No TCP/SSL connection can be established (e.g. Gateway not reachable or SSL handshake failed)	Cloud Proxy returns HTTP response 503 (Service Unavailable) and closes the client socket
Cloud Proxy sends the request HTTP header to VFI Cloud gateway	I/O error while sending the HTTP header (e.g. connection is closed by VFI Cloud gateway)	Cloud Proxy returns HTTP response 500 (Internal Server Error) and closes the client socket
Cloud Proxy forwards the request HTTP document from client to VFI Cloud gateway	HTTP document is invalid (e.g. format error) HTTP document is not received or incomplete (receive timeout) I/O error while receiving the HTTP document (e.g. connection is closed by client) I/O error while sending the HTTP document (e.g. connection is closed by VFI Cloud gateway)	Cloud Proxy returns HTTP response 400 (Bad Request) and closes the client socket Cloud Proxy returns HTTP response 408 (Request Timeout) and closes the client socket Cloud Proxy closes the client socket Cloud Proxy returns HTTP response 500 (Internal Server Error) and closes the client socket
Cloud Proxy receives the response HTTP header from the VFI Cloud gateway	HTTP header is invalid (e.g. format error) HTTP header is not received or incomplete (receive timeout) I/O error while receiving the HTTP header (e.g. connection is closed by VFI Cloud gateway)	Cloud Proxy returns HTTP response 502 (Bad Gateway) and closes the client socket Cloud Proxy returns HTTP response 504 (Gateway Timeout) and closes the client socket Cloud Proxy returns HTTP response 500 (Internal Server Error) and closes the client socket
Cloud Proxy sends the response HTTP header to client	I/O error while sending the HTTP header (e.g. connection is closed by client)	Cloud Proxy closes the client socket
Cloud Proxy forwards the response HTTP document from VFI Cloud gateway to client	HTTP document is invalid (e.g. format error) HTTP document is not received or incomplete (receive timeout) I/O error while receiving the HTTP document (e.g. connection is closed by VFI Cloud gateway) I/O error while sending the HTTP document (e.g. connection is closed by client)	Cloud Proxy closes the client socket Cloud Proxy closes the client socket Cloud Proxy closes the client socket Cloud Proxy closes the client socket

Troubleshooting

On all platforms logging messages can be enabled by setting environment variable PRX_LOGMASK. This variable is defined as a bitmask consisting of following decimal values:

1   = LOG_EMERG:   log messages for conditions, if system is unusable2   = LOG_ALERT:   log messages, which action must be taken immediately4   = LOG_CRIT:    log messages for critical conditions8   = LOG_ERR:     log messages for error conditions16  = LOG_WARNING: log messages for warning conditions32  = LOG_NOTICE:  log messages for normal but significant conditions64  = LOG_INFO:    log messages with informational contents128 = LOG_DEBUG:   log debug-level messages

Default value for PRX_LOGMASK is 0, which means that no logging outputs are activated by default. LOG_EMERG represents the lowest logging level, which only generates messages, if Cloud Proxy cannot be started or is not working at all. The highest level LOG_DEBUG will produce many messages of low-level I/O routines and should only be enabled for debugging purposes. For first analyses it is recommended to set LOG_ERR, which will provide information about error conditions, e.g. communication problems.

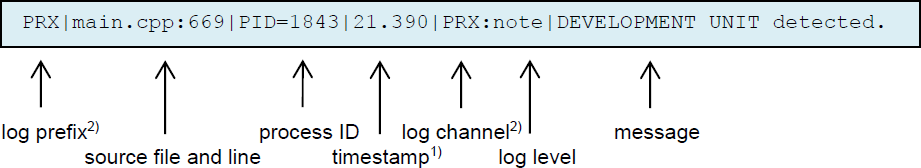

A console logging message consist of the following fields:

1) timestamp:

The timestamp format is <seconds>.<milliseconds>. The value represents the time since beginning of capture (startup or first usage of IPC component).

2) log prefix, log channel:

The field log prefix is used to identify Cloud Proxy as logging source. For identification of the subcomponent the field log channel was introduced. Recently this is always PRX, but other names can be used for future extensions.

Support for ADKLOG: Logging with liblog library

Since version 2.0.1 the Cloud Proxy also has added support for ADKLOG component. ADKLOG is required to implement the new ADK logging concept, which provides the Logging Control Panel (LCP) used as central instance to configure and enable logging for the several ADK components. For this, LCP uses a configuration files (recently one for Cloud Proxy), which are read by liblog library. If installed on the system, liblog library will be used by Cloud Proxy to output logging messages. In this case, the logging messages are passed to liblog library instead of using console logging mechanism (with stderr), which is described above.

In order to lookup the corresponding configuration files, ADKLOG uses component identifiers, which are reserved for each ADK component. Cloud Proxy uses the following:

Component Id	Configuration file	Description
PRX	PRX_log.conf	Cloud Proxy related log settings

The configuration files contain several settings for logging like output channels, verbosity and a logging mask, which is similar to environment variable PRX_LOGMASK. For more details about configuration settings or logging message formats, please refer to documentation of ADKLOG project.

CP Log Forwarder

CP applications may generate logging messages, which needs to be transmitted to Verifone CP Logging Service. This service is coupled to the VFI Cloud server and the basic usage is to provide an interface to CP apps for statistics and error reporting. Without the need initially of a sensitive data logging filter the messages must be transferred in a secure way. Therefore, Cloud Proxy has implemented a CP Log Forwarder, which redirects messages to the Verifone CP Logging Service over the secure SSL channel to VFI Cloud. The CP Log Forwarder receives logging data from CP apps with notification _CPLog over interface of ADKIPC component. No result notification is returned to CP applications by the CP Log Forwarder. Content and format of Log HTTP messages are described in CPR documentation. For details about notification interface, please refer to ADKIPC documentation and the programmers guide.

CP Log Forwarder is configured in environment configuration file <environment>.env (see chapter Environment Configuration File).

Cloud Proxy Configuration Interface

Since version 3.0.0 of Cloud Proxy, applications are allowed to use the remote configuration interface to read out information and settings of Cloud Proxy. Recently, the interface is fully implemented by CPDownloader application, which comes along with ADKGUI component. CPDownloader allows to show information like installed Cloud Proxy version or which environment or certificates are being used. In addition, a small amount of settings can be configured into Cloud Proxy, for instance, it is possible to switch the cloud environment during runtime. This chapter provides an overview about the Cloud Proxy Configuration Interface and instructions for applications that want to implement the interface instead of using CPDownloader.

Cloud Proxy Configuration Interface is provided via notification service of ADKIPC component. An application can send configuration requests as IPC notification with notification CloudProxyConf. After Cloud Proxy has processed the request, it responds with notification CloudProxyConfResponse. Both, configuration request and responses have a JSON encoded payload and use a JSON object proxy as container, which contains all data. An overview about the supported commands and its parameters is given by the following chapters.

Read Static Information

Static information parameters like version and build details can be requested with command info. Static information parameters won't change until next reboot.

CloudProxyConf parameters:

Container	Parameter	Content
proxy	command	info

Example:

{  "proxy" : {    "command" : "info"  }}

CloudProxyConfResponse parameters:

Container	Parameter	Content
proxy	auth_ex_support	AuthEx key/certificate for SSL client authentication is installed and supported by the system: 1=supported 0=unsupported
proxy	buildinfo	Build information string of format: <name> <version> <month> <day> <year> <hour>:<min>:<sec>
proxy	device_type	Detected device type string: prod=productive unit os-dev=Fusion/Engage OsDev unit cp-dev=Fusion/Engage CpDev unit
proxy	version	Version string in format: <major number>.<minor number>.<bugfix number>-<build number>
proxy	result	Result: success=command successful error=command failed

Example:

{  "proxy" : {    "auth_ex_support" : 0,    "buildinfo" : "cloudproxy 3.0.0-1 Mar 14 2018 12:16:56",    "device_type" : "prod",    "version" : "3.0.0-1",    "result" : "success"  }}

Read Configuration

Configuration settings can be read with command readconfig.

CloudProxyConf parameters:

Container	Parameter	Content
proxy	command	readconfig

Example:

{  "proxy" : {    "command" : "readconfig"  }}

CloudProxyConfResponse parameters:

Container	Parameter	Content
proxy	auth_ex	AuthEx certificate for SSL client authentication: 1=enabled 0=disabled    This parameter is optional. If not supplied, AuthEx certificate is not installed or not supported by the system. AuthEx key/certificate is installed with productive warrenty keys. If AuthEx certificate is disabled or not supported, Cloud Proxy will use the alternative certificate specified in environemnt configuration file (see section proxy, key client-id). For more details, please refer to chapter Environment Configuration File.
proxy	cloud_env	Name of recently enabled cloud environment, a string of environment list provided by parameter cloud_env_list (see below).
proxy	cloud_env_file	Configuration filename of recently enabled cloud environment.    Depending on platform this can be an absolute or relative path. Base of the relative path is the working directory of Cloud Proxy binary.
proxy	cloud_env_list	List of available cloud environments to enable, an array of strings with environment names (see table of chapter Default environments and activation).    This list is dynamic, e.g. productive environments will not be returned on test units (CpDev and OsDev).
proxy	cloud_env_list2	List of available cloud environments to enable as JS Object array. Each entry consists of a JS object per environment with the following data: Parameter Type Description name String Environment name (same as provided by parameter cloud_env_list). prod Boolean Flas set to true, if the environment is productive and can be used with productive AuthEx key/certificate only. certs Array of Strings Array of strings with certificate names, which are available for this environment. Devices having installed AuthEx key/certificate the list contains the string auth-ex.    This environment list is dynamic, e.g. productive environments will not be returned on test units (CpDev and OsDev). Order of environments is the same as returned in parameter cloud_env_list. Parameter cloud_env_list2 was introduced with Cloud Proxy 3.0.11. Previous versions do not provide this parameter.
proxy	cloud_hostname	Hostname of VFI Cloud gateway of recently enabled cloud environment.
proxy	result	Result: success=command successful error=command failed

Example:

{  "proxy" : {    "auth_ex" : 1,    "cloud_env" : "dev",    "cloud_env_file" : "proxy/dev.env",    "cloud_env_list" : ["prod", "dev", "test", "staging1"],    "cloud_env_list2" : [      {"name":"prod",       "prod":true,       "certs":["auth-ex"]      },      {"name":"dev",       "prod":false,       "certs":["auth-ex"]      },      {"name":"test",       "prod":false,       "certs":["auth-ex"]      },      {"name":"staging1",       "prod":false,       "certs":["auth-ex"]      }    ],    "cloud_hostname" : "dev.cgateway.verifone.com",    "result" : "success"  }}

Write Configuration

Configuration settings can be written with command writeconfig.

CloudProxyConf parameters:

Container	Parameter	Content
proxy	command	writeconfig
proxy	cloud_env	Name of cloud environment to be enabled, a string of environment list provided with parameter cloud_env_list in command readconfig (see above).    Test units (CpDev and OsDev) does not allow to enable environment prod and in this case command writeconfig will fail on these devices.
proxy	auth_ex	If installed and supported, AuthEx certificate for SSL client authentication can be enabled or disabled: 1=enable 0=disable    It is not allowed to disable AuthEx certificate for an environment, which does not provide an alternative certificate in certificate list different than string auth-ex (see parameter certs in environment list cloud_env_list2). In addition, AuthEx certificate cannot be enabled, if it is not installed or supported by the system (see chapters Read Static Information and Read Configuration). In both cases command writeconfig will fail.

Example:

{  "proxy" : {    "command" : "writeconfig",    "cloud_env" : "dev",    "auth_ex" : 0  }}

CloudProxyConfResponse parameters:

Container	Parameter	Content
proxy	result	Result: success=command successful error=command failed

Example:

{  "proxy" : {    "result" : "success"  }}

Cloud Connectivity Check

Applications can use command cloudcheck to check the connectivity to VFI Cloud gateway. With this command Cloud Proxy will establish a secure SSL connection to VFI Cloud gateway, which will forward the request to Verifone Connectivity Service webserver, which is behind the VFI Cloud gateway. URL and host of the Verifone Connectivity Service webserver is configured in environment configuration file <environment>.env (see chapter Environment Configuration File).

CloudProxyConf parameters:

Container	Parameter	Content
proxy	command	cloudcheck

Example:

{  "proxy" : {    "command" : "cloudcheck"  }}

CloudProxyConfResponse parameters:

Container	Parameter	Content
proxy	error_code	HTTP status code of Connectivity Check request, examples: 200 (OK) 503 (Service Unavailable)    Status codes 2xx are returned for success, others mean failure.
proxy	error_reason	Result as string (readable error reason), examples: OK Service Unavailable
proxy	result	Result: success=command successful error=command failed    success is returned for HTTP status code 2xx, else error is returned

Example:

{  "proxy" : {    "error_code" : 200,    "error_reason" : "OK",    "result" : "success"  }}

Version History and Greenbox Migration

Versions < 3.0.7 are out-dated and cannot be used any longer, since Commerce Gateway (CG) has changed server certificates to new root CA "AddTrust External CA Root" (Sectigo Limited). Therefore, older Cloud Proxy version won't be able to connect if installed.

Basically, ADK Cloud Proxy is provided as two different version variants:

• Versions < 3.1.0 are used for older ADKs (ADK <4.9), which use Verifone Commerce Gateway (CG) endpoints with base URL cgateway.verifone.com
• Versions >= 3.1.0 are planned for ADKs >=4.9 intened for use of new GSC environments of Verifone Greenbox.

With update of Cloud Proxy to version >= 3.1.0, new GSC entpoints will automatically be applied with installation of the base package (see chapter Cloud Proxy base packages).

The configured environment endpoint (used by old Cloud Proxy < 3.1.0) is mapped to the corresponding new GSC endpoint, which will be used by the updated Cloud Proxy >= 3.1.0.

The mapping of the environments during the update shows the follwing table:

CG environment with old versions (< 3.1.0)	GSC environment with new version (>= 3.1.0)
dev (dev.cgateway.verifone.com)	gsc_dev (dev2.test-gsc.vfims.com)
test (test.cgateway.verifone.com)	gsc_qat (qat2.test-gsc.vfims.com)
staging1 (staging1.cgateway.verifone.com)	gsc_cst (cst2.test-gsc.vfims.com)
prod (cgateway.verifone.com)	gsc_prod (gsc.verifone.cloud)

Even version >= 3.1.0 might use old CG environment endpoints, if the corresponding activation package is installed.

Finally, version 3.1.0 ADK Cloud Proxy has dropped support for Activation and Parameter Service, because the services were not used in past and no longer required. For this reason, customers must disable requests to the Activation and Parameter Service when using a newer Cloud Proxy in an older ADKs with Multi Application Controller (MAC) < 3.78.3. Otherwise it won't be possible to activate installed CPApps. For more details please refer to MAC documentation or documentation of old Cloud Proxy versions.

Since version 3.2.0 Cloud Proxy has added support to add environments with the installation of an User Configuration Package (see chapter Install additional environments).

Because customers weren't able to migrate their CPApps to new GSC endpoints within the envisaged timeframe, existing ADKs still have integrated an old version 3.0.x.

Since 3.0.40 and 3.4.0 both version branches were synchronized and have a common code base, since features implemented for ADK 4.9 (e.g. GSC support) were also required for old ADKs. The only difference is version 3.4.0 will automatically switch to GSC endpoints with its installation, whereas version 3.0.40 will keep CG endpoints and must use activation packages to configure a GSC endpoint (see chapter Default environments and activation). Thus, future ADKPRX releases will be provide in 2 variants supporting the same features. These variants use the following version schemes:

• x.y.z used for ADKs >= 4.9
• x.0.yz used for older ADKs < 4.9

With version 3.5.0 Cloud Proxy has added support for VOS3 platform. In addition, old CG endpoint were removed from the base package (see Cloud Proxy base packages). Thus, old CG endpoints (dev, test, staging1 and prod) are no longer available with default environments (see Default environments and activation of version 3.5.0). Old ADKs for VOS/VOS2 from now must use version 3.0.50, if they still want to keep support for old endpoints, since version 3.5.0 as dropped it. Finally, documentation of version 3.0.50 declares CG endpoints as deprecated with recommendations to migrate to GSC. The last option to use old CG endpoints with version 3.5.0 is the installation of an User Configuration package on top of the base package. (see chapter Install additional environments). Customers are advised not to do this for new productive installations, since old CG environment endpoints will go offline sooner or later.

For more version details please read release notes prx-releasenotes-X.X.X-X.pdf included in documentation package prx-doc-X.X.X-X.zip, which is provided with the ADK Cloud Proxy release.
